Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods

Name: Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods
Brand: Jiayan
Price: 1 USD

Quality Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods wholesale

Brand Name : Jiayan

Model Number : CMO

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per week

Delivery Time : 7 days

Packaging Details : inner packing: poly bag ; outside packing: carton box

Material : 45# Carbon steel

Power Fluid : Filtered Oil

The range of pressure(mpa) : 0.3-7.0 MPA(3-70kg/Cm2)

Contact Now

Light hydraulic cylinders 45# carbon steel multiple mounting methods high quality seal

Feature:

1.Standard: GB/T15622-2995
2.Use high-quality seal to avoid leakabe and have long service life
3.The rod cover and rear cover make from No45 Steel, and the piston is chromeplate,
4. compact structure, more durable

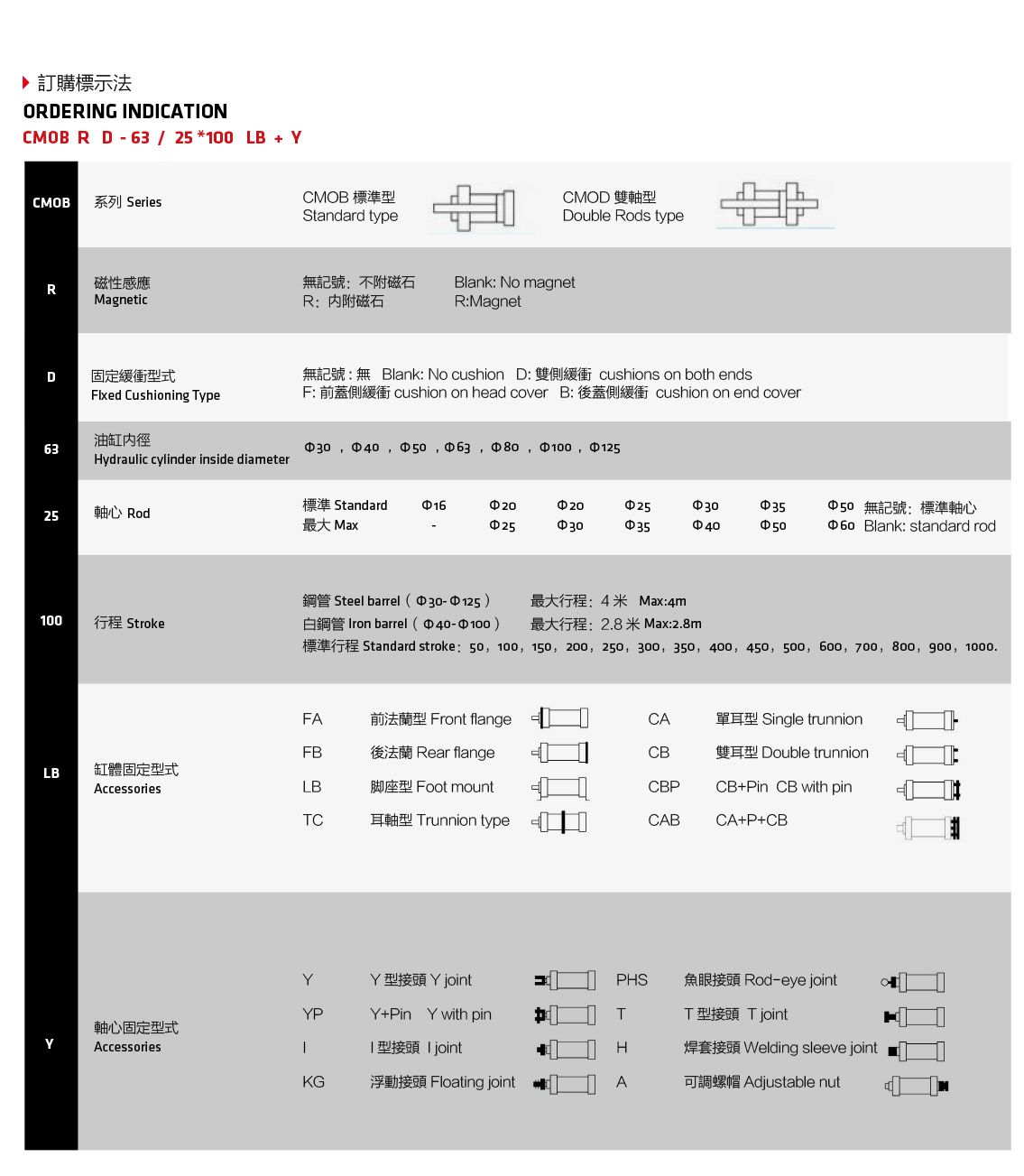

5.Thera are several mounting typs, SD, FA, FB, LB, TC, CA, CB, CBP, and CAB,
6.The desiger could chosse it acording to the demand
7.Any other special cylinder could order, welcome to contac with us

Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods

Product Tags:

double rod end hydraulic cylinder

light duty hydraulic cylinders

Light Small Bore Long Stroke Hydraulic Cylinders Multiple Mounting Methods Images
