Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench

Name: Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench
Brand: Jiayan
Price: 1 USD

Quality Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench wholesale

Brand Name : Jiayan

Model Number : MD

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 300 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Carbon Steel

Max Operation Pressure : 25 Mpa

Pipe Port Size : Rp1/8

Work Temperature : 0-70 degree

Fluid : Hydraulic Oil

Warranty : 1 year (change new one for free)

Contact Now

Hydraulic Rotary Joint Manifold distributor for Rotary Workbench Reliable Structure

Product Instruction:

According to the requirements of four-axis fixtures from domestic and overseas machining customers, we designed several four-axis rotary joints for customers. Pls contact us for more technique details before use our our products.

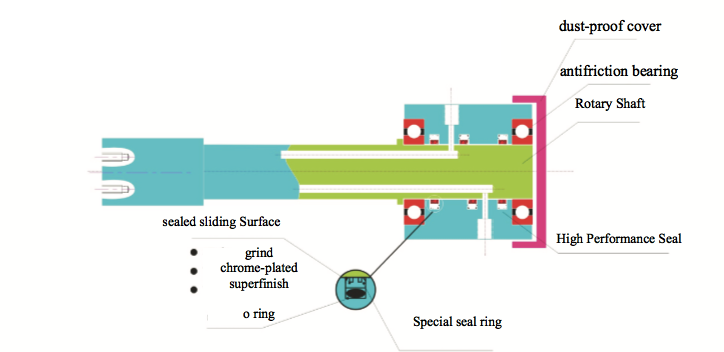

Features:

1.Low starting torque
The special seal with less resistance is adopted to control the sliding resistance to the minimum and realize the low torque when starting.

2.Excellent sealing performance and durability
After super finishing on sealing sliding surface is carried out and hard chrome plated , the excellent sealing performance and durability will be formed.

Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench

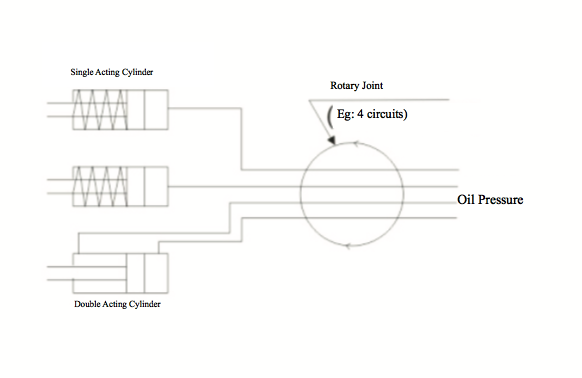

The hydraulic rotary joint can effectively solve the problem of oil supply from the hydraulic hose and the fixed pipe to the rotary table of the machining center.
For example, when choosing the 4 circuit type, it can be used to control 4 single acting hydraulic cylinders or double acting hydraulic cylinders respectively.

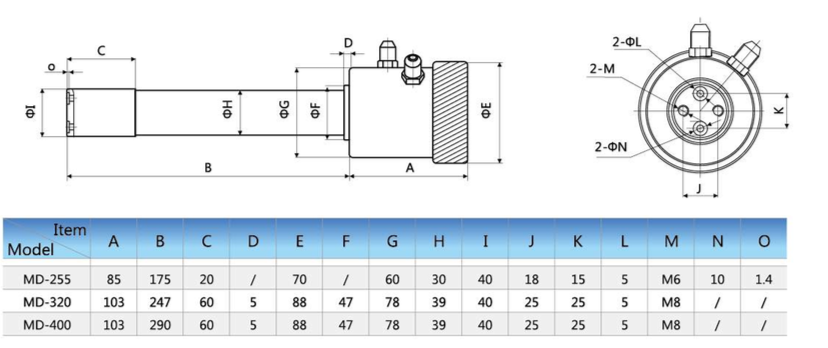

Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench

Model	MD-255	MD-320	MD-400
Circuit No.	2	4	6
Fluid	Hydraulic Oil
Max Operation Pressure (Mpa)	25
revolution
Work Temperature	0-70
Piping port Size	Rp 1/8

Oil Flow Control Valve Rotary Joint Manifold Distributor For Rotary Workbench
