Mini Horizontal Toggle Clamp 201 THRU 201-A Electronic Products Test Jig

Brand Name : dls

Model Number : 201

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal, L/C

Supply Ability : 3000 pcs per week

Delivery Time : 7 days

Packaging Details : plastic bag and carton box

Material : Cold Roll Sheet

HOLDING CAPACITY : 27kg

SPINDLE SUPPLIED : M4x27

BAR OPENS : 90 degree

HANDLE OPENS : 80 degree

Weight : 28g

Contact Now

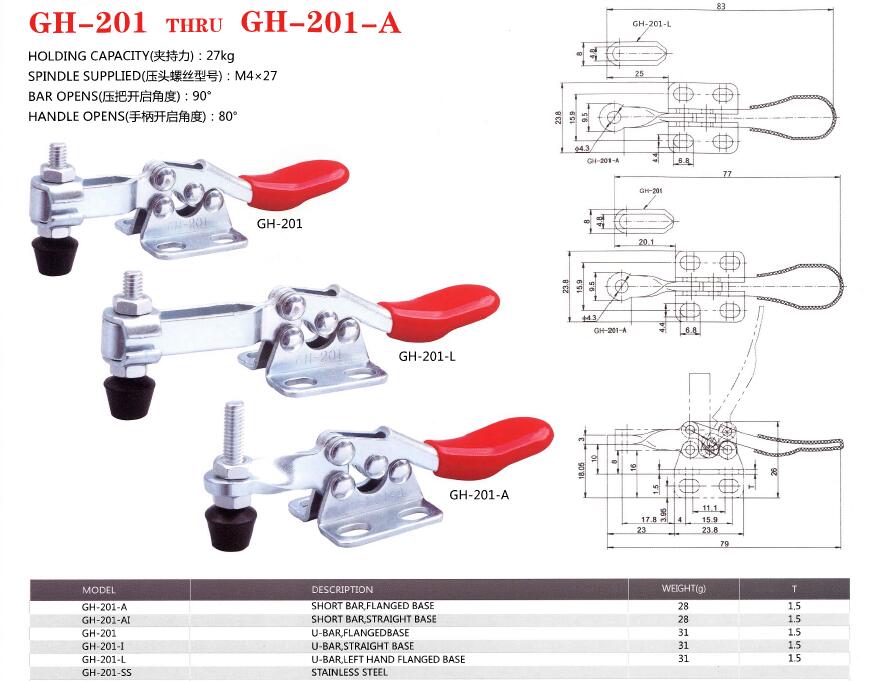

Horizontal Toggle Clamp 201 THRU 201-A Smallest Electronic Products Test Jig With Rubber Cap Spindle

Product Specification and features:

HOLDING CAPACITY : 27kg

SPINDLE SUPPLIED : M4x27

BAR OPENS: 90 degree
HANDLE OPENS: 80 degree

Weight:28g

Series Products:

201-A,201-AI,201,201-1,201-L, 201-SS and 201-ASS in stainless steel

1.Ideal for quickly holding down sheet metal or circuit boards, for machine operation, welding, mould, electronic equipment assembly, etc field.

2.U bar, flanged base with rubber cap spindle.

3.Plastic cover handle for easy, safe and comfortable operation.

4.Horizontal quick release toggle clamps are an essential product for fixture assembly.

5.With rubber cap spindle Most suitable for quickly holding down sheet metal or circuit boards, for machine operation, welding, mould, electronic equipment assembly, etc field

6.Material: Made by carbon steel coating zinc for resisting corrosion. Oil and Stain resistant red vinyl solid hand grips

Mini Horizontal Toggle Clamp 201 THRU 201-A Electronic Products Test Jig
