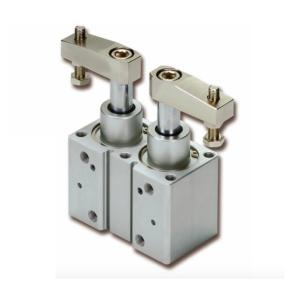

Casting Pneumatic Swing Clamp , Double Acting Pneumatic Cylinder Power Saving

Product Categories

Dongguan Jiazheng Hydraulic Technology Co, LTD

Contact Now

Name: Casting Pneumatic Swing Clamp Double Acting Pneumatic Cylinder Power Saving
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : HER

Certification : ISO9001:2008

Place of Origin : Dongguan Chinia

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 500 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

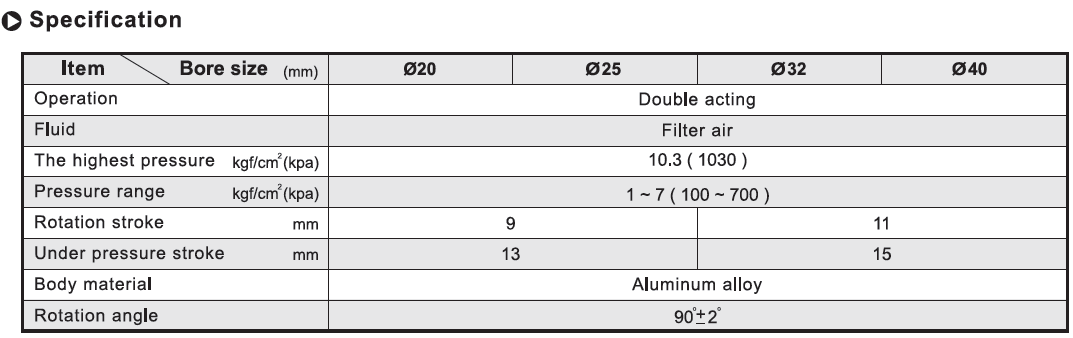

Material : Aluminum Alloy

Structure : Rotary Cylinder

Power : Pneumatic

Maximum Stroke : 15mm

Shaft Diameter : 20-40mm

Fluid : Filter air

Max.pressure : 1030kpa

Pressure range : 100~700kpa

Rotation stroke : 9-11mm

Rotation angle : 90°±2°

Contact Now

Double Action Rotary Swing Clamp Pneumatic Cylinder Casting Product Machining Fixture

Products Features:

1.This type rotary clamp is made by advanced manufacture equipment.

2.Strict material selection method

3.Advanced inspection instrument

4.Made by Skillful technician

Casting Pneumatic Swing Clamp , Double Acting Pneumatic Cylinder Power Saving
