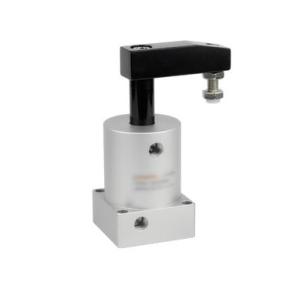

Name: Rotary Clamp Cylinder Air Cylinder Welding Clamps ISO9001 Certification
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : ACK

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPAL

Supply Ability : 1000 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Aluminium Alloy

Type : Standard

Structure : Rotary Cylinder

Power : Pneumatic

Maximum Stroke : 15mm

Shaft Diameter : 25mm-63mm

Acting Type : Double acting

Working Media : Cleaned Air

Working Pressure : 0.1-0.9Mpa

Working Temperature : -5~70℃

Port size : M5X0.8

Working Speed : 30~500 mm/sec

Rotary Stroke : 11-15mm

Clamping Stroke : 11-15mm

Contact Now

Pneumatic Rotary Swing Twist Clamping Air Cylinder Welding Clamps

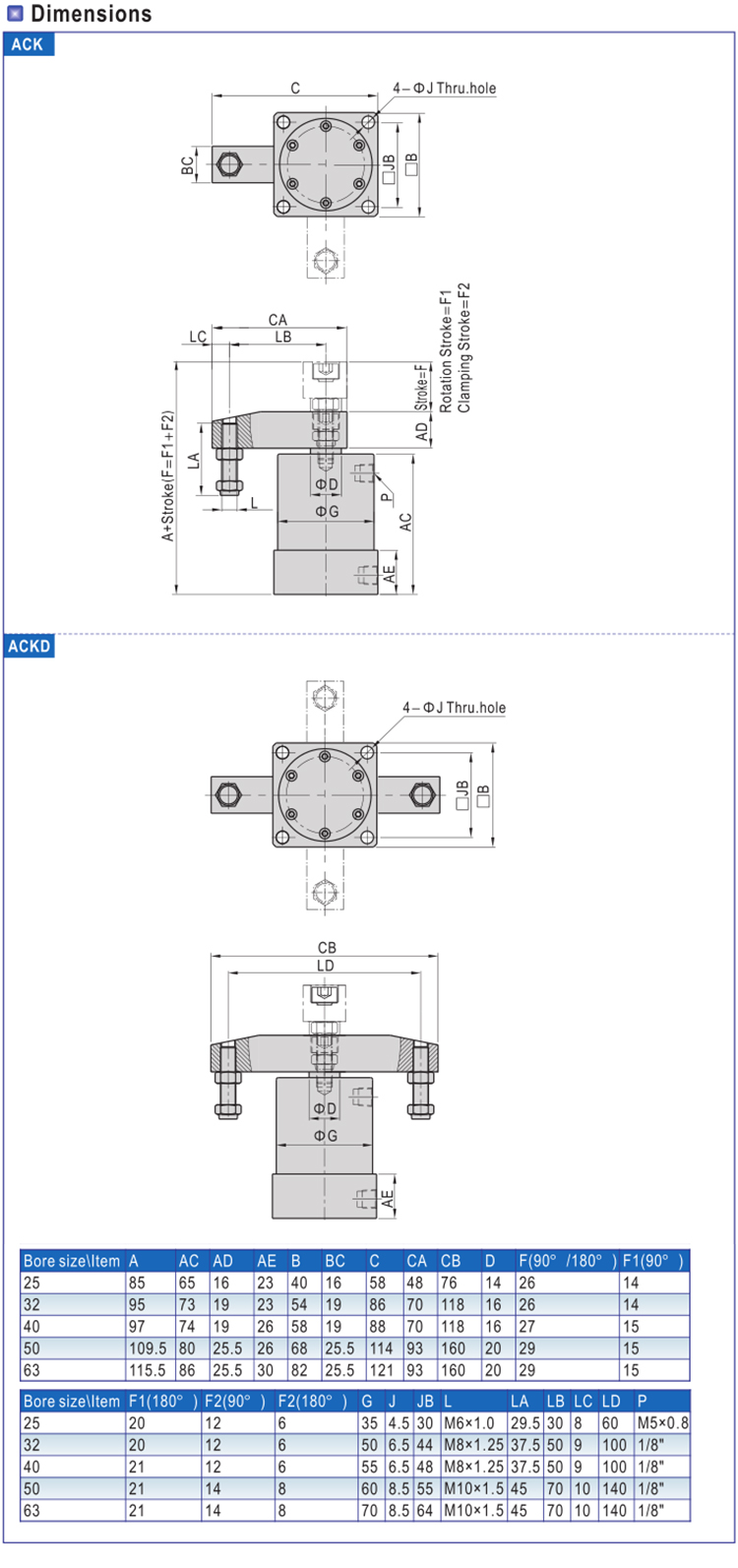

Specifications

Bore Size(mm)	25	32	40	50	63
Working Type	Double Acting
Working Media	Cleaned Air
Working Pressure	0.15~0.95Mpa
Working Temperature	0~60℃
Working Speed	30~500mm/sec
Rotary Stroke	11mm	13mm		15mm
Down Stroke	11mm	13mm		15mm

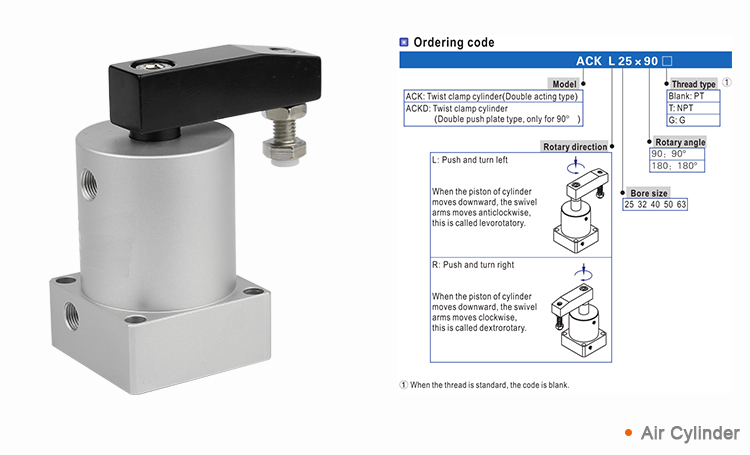

Rotation Angle	90° can be customized(0°, 45°, 60°)
Direction of Rotation	Turn left(from right to left)-L; turn right(from left to right)-R
Buffering	Rubber Cushion
Port Size	M5X0.8	M5X0.8
Lubrication	Freely supply

Rotary Clamp Cylinder Air Cylinder Welding Clamps ISO9001 Certification
