4 Spool Hydraulic Control Valve Non-leak Pilot Check Valve One Way valve

Name: 4 Spool Hydraulic Control Valve Nonleak Pilot Check Valve One Way valve
Brand: Jiayan
Price: 1 USD

Quality 4 Spool Hydraulic Control Valve Non-leak Pilot Check Valve One Way valve wholesale

Brand Name : Jiayan

Model Number : CBEP

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, PayPal

Supply Ability : 400 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Carbon Steel

Operating pressure range : 1.0 ~ 7.0MPa

withstanding pressure : 10.5 Mpa

Min Passage Area : 28 mm2

Operation Temperature : 0-70 C

Fluid : Hydraulic Oil Equivalent to ISO-VG-32

Operation Pressure : above 2Mpa

Warranty : 1 year (change new one for free)

Contact Now

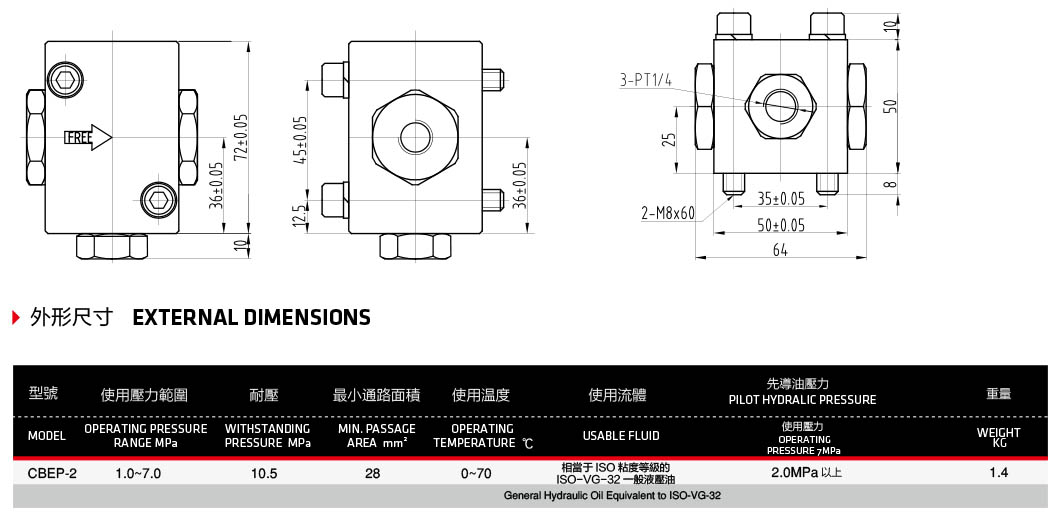

Non-leak Pilot Check Valve Standard Type Max Operation 7.0MPa Withstanding Pressure 10.5 Mpa

Features

When the pressure supply of pressure source is cut off, the pressure can be kept unchanged until the oil pressure is supplied to the oil control port.

Type:

Piping Model

Operating pressure range 1.0 ~ 7.0MPa

Ordering Code

CBEP-2

CBEP	Series
2	Pressure Code :Operating Pressure Range 1.0 ~ 7.0MPa

4 Spool Hydraulic Control Valve Non-leak Pilot Check Valve One Way valve
