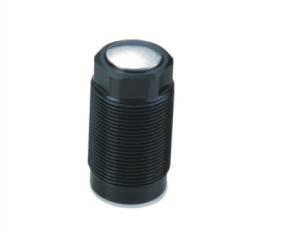

10 Ton Single Action Hydraulic Cylinders No Oil Leakage Compact Mounting Size

Threaded Single Acting Hydraulic Cylinder No Oil Leakage Compact Mounting Size Long Pressure Maintaining Time

FEATURES

1.The Thread-body single acting hydraulic cylinder adopts imported oil seal and accessories to guarantee

the quality . No oil leakage while clamping under high pressure for a long time.

2.The volume of this thread-body single acting hydraulic cylinder is small. It can be installed in

limited space on the fixture.

3. The rod end of this hydraulic cylinder extends out by oil pressure and returns back by spring.

4. The angle degree between the cylinder and workpiece could not be larger than 10° while the cylinder is

installed perpendicularly on the work platform.

5. A leakage-proof gasket must be putted under the cylinder

6. Max. operating pressure: 250 kgf/cm2

Min. operating pressure: 20 kgf/cm2

7. Acting Type :Single acting

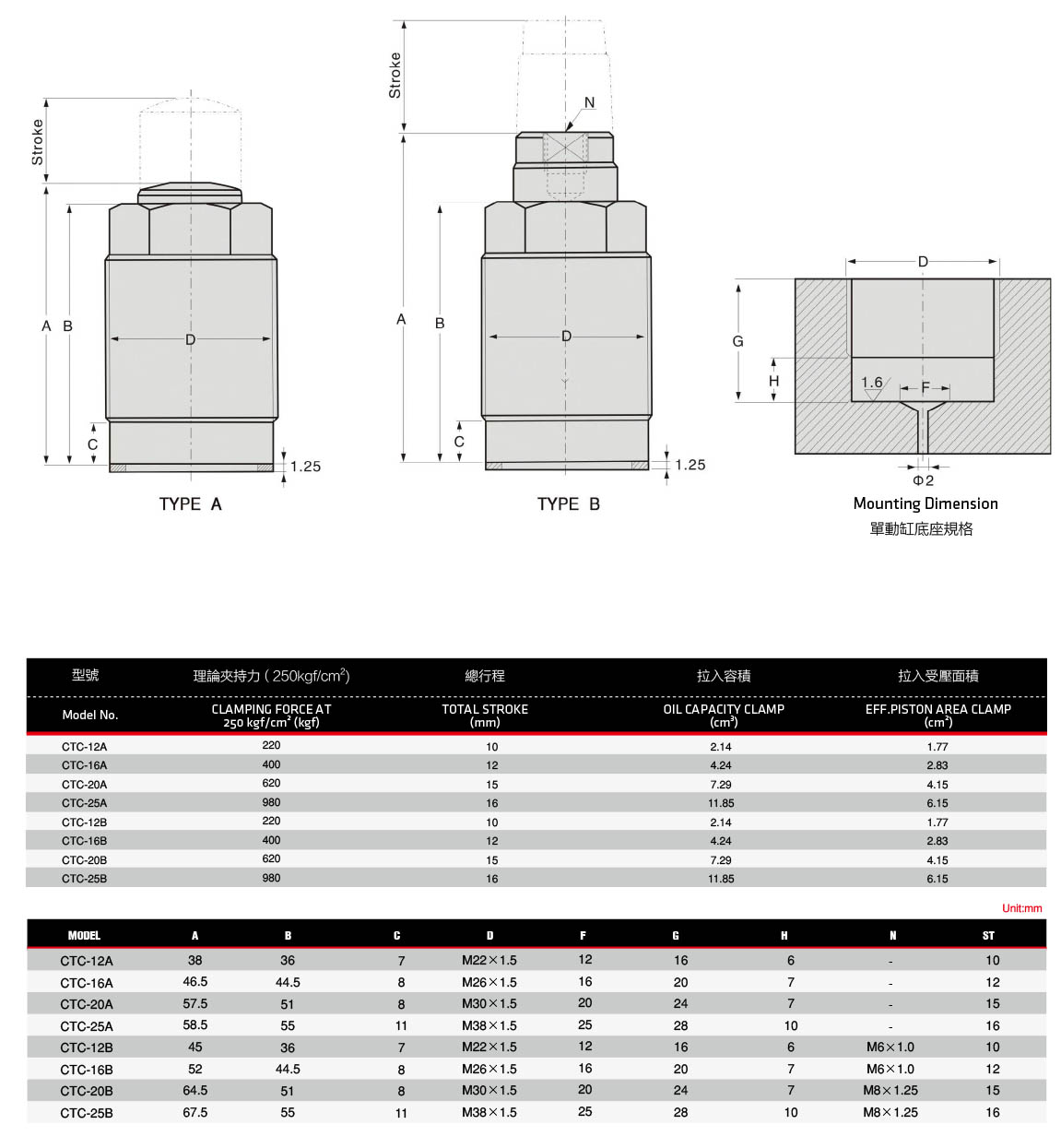

Specifications:

Ordering Code:

CTC-16 A

1 2 3
