Single Acting Hollow Plunger Hydraulic Cylinders Customized Installation Size

Name: Single Acting Hollow Plunger Hydraulic Cylinders Customized Installation Size
Brand: Jiayan
Price: 1 USD

Quality Single Acting Hollow Plunger Hydraulic Cylinders Customized Installation Size wholesale

Brand Name : Jiayan

Model Number : RKC

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 400 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton bag

Material : Carbon Steel

Max Clamping Force : 980kgs

Max. Operation Pressure : 250 kgf/cm2

Max. Stroke : 16mm

Fluid : Filtered hydraulic oil

Warranty : 1 year (change new one for free)

Contact Now

Thread Single Acting Oil Cylinder High Clamping Force No Leakage Friendly Installation Size

Single Acting linear hydraulic motor

Features and Specifications

1. This externally threaded small single-acting cylinder adopts imported oil seals and parts to ensure the

quality.

2.No oil leakage during the high pressure clamping

3.This externally threaded small single-action cylinders are small in size and are used on fixtures to be arranged in a restricted space.

4.This type of hydraulic cylinder is used for pushing out situation, and clamping rod end is retracted by spring. 5. Installed as perpendicular to the work platform surface as possible, and do not tilt more than 10°.

6. A locking leak-proof gasket is required at the bottom of the cylinder.

Applications:

manufacturing machinery, civil engineering and machining center

Specifications

Type	RKC-12A	RKC-16A	RKC-20A	RKC-25A	RKC-12B	RKC-16B	RKC-20B	RKC-25B
Diameter of piston (mm)	Φ12	Φ16	Φ20	Φ25	Φ12	Φ16	Φ20	Φ25
Total Stroke	10	12	15	16	10	12	15	16
Fluid	Filtered oil
Range of pressure(kg/cm²)	20-250kgs/cm²
Actig type	Single acting
Theoretical clamping 200 kgs/cm²	200kgs	400kgs	620kgs	980kgs	200kgs	400kgs	620kgs	980kgs

Odering Code:

RKC--16 A

1 2 3

1	Series	RKC
2	Diameter of piston	12, 16, 20, 25
3	type	type A, type B and type c

Single Acting Hollow Plunger Hydraulic Cylinders Customized Installation Size

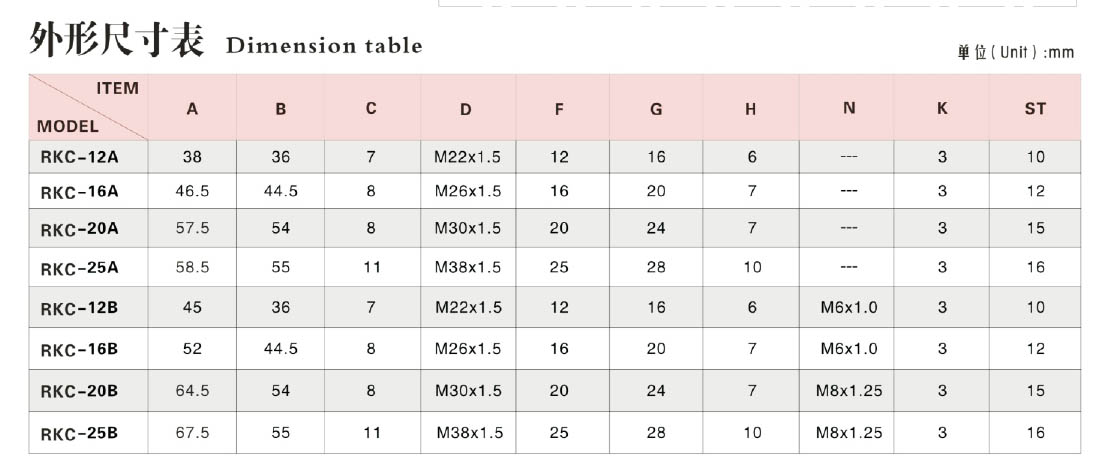

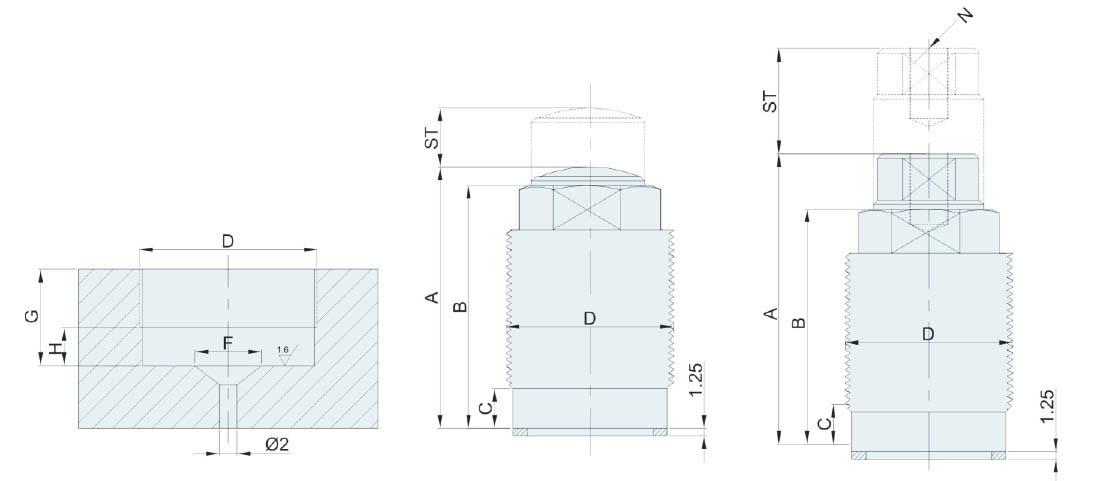

hydraulic cylinder mounting base size Type A - Extend Type B - Extend

Single Acting Hollow Plunger Hydraulic Cylinders Customized Installation Size

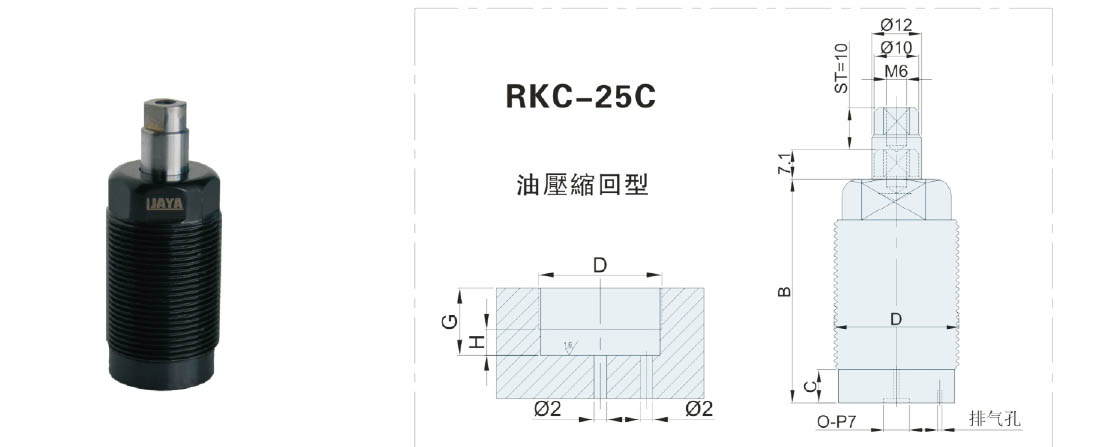

Type C-- oil pressure retract type

Single Acting Hollow Plunger Hydraulic Cylinders Customized Installation Size
