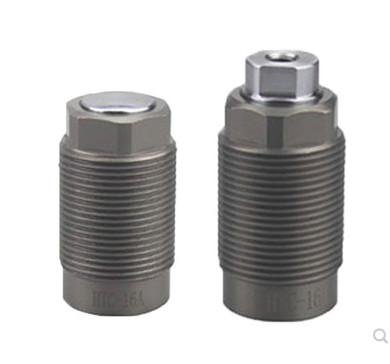

Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

Name: Threaded Single Acting Hydraulic Cylinder Long Stroke Hydraulic Cylinder
Brand: Jiayan
Price: 1 USD

Quality Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder wholesale

Brand Name : Jiayan

Model Number : TC

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 year

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 1000 pcs per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Carbon Steel

Structure : piston cylinder

Fluid : filtered oil

Surface Finish : oxidizing blackening

Max. Operation Pressure : 20kg/cm2

Min. Operation Pressure : 250kg/cm2

Max Clamping Force : 980kgs

Warranty : 1 year

Contact Now

Threaded Hydraulic Cylinder Machining Center Supporting Cylinder Clamp

Products Features

1.This hydraulic threaded-body cylinder is a single acting cylinder and is applied to a condition of knocking-out, and it applies a clamping force on a workpiece within a stroke to secure the workpiece.
2.A series: knocking-out heads without female thread
3.B series: knocking-out heads with female thread

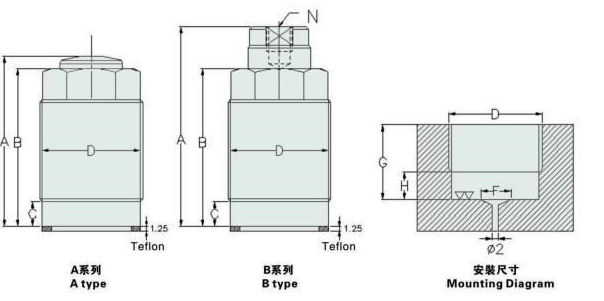

4.Mounting way is shown as the following drawing illustrating suggested dimension and this mounting needs a teflon gasket in order to avoid oil leakage

Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
