Brand Name : Jiayan
Model Number : TC-20B
Certification : ISO9001:2008
Place of Origin : Dongguan China
MOQ : 1 pc
Price : Negotiable
Payment Terms : L/C, T/T, Western Union,Paypal
Supply Ability : 1000 pcs per week
Delivery Time : 6 days
Packaging Details : poly bag and carton box
Material : High Strength Carbon Steel
Surface Treatment : Oxidative Blackening
Bore Of Piston : 20mm
Total Stroke : 15mm
Min Operation Pressure : 20kg/cm2
Max. Operation Pressure : 250kg/cm2
Acting Type : Single Acting
Warranty : 1 Year

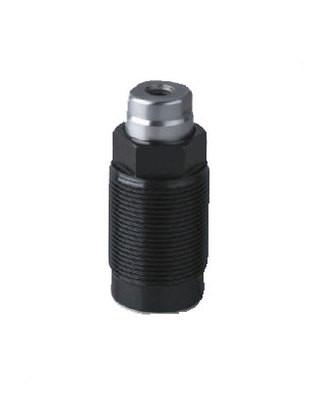

Long Clamping Rod Acting Single Cylinder Diameter of Piston 20mm Stroke 15mm
Product Specification and features:
1. Material High Strength Carbon Steel
2.Surface Treatment:oxidative blackening
3.Bore of Piston:20mm
4.Total stroke:15mm
5.Min Operation Pressure:20kg/cm2
6.Max. operation Pressure:250kg/cm2
7.Acting Type:Single Acting
8. Fluid: filtered hydraulic oil
9. No leakage under high pressure
10: long pressure maintaining time
11.Can be used in restricted space
12. Machining center clamping cylinder
TC-20B Single acting cylinder Mounting Size below
![]() |
